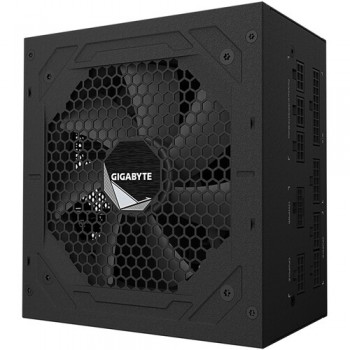

GP-UD1000GM
ULTRA DURABLE:
Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.
HIGH QUALITY JAPANESE CAPACITORS:
The main capacitors use high quality Japanese capacitors to produce the efficient performance and ensure the longer reliability.
ENHANCED THERMAL SOLUTION:
Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.
120MM SMART HYDRAULIC BEARING (HYB) FAN:
The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.
PROTECTION:
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
FULLY MODULAR DESIGN:
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
80 PLUS GOLD CERTIFIED:
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.
SINGLE +12V RAIL:
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.
COMPACT DESIGN:
With the help of engineers' excellent design capabilities and heat dissipation technology on various hardware products, and the use of higher quality materials, GIGABYTE has reduced the length of the power supply to an amazing 140 mm, so it can be easily installed in any chassis without space constraints.
Specifications:
Model:
GP-UD1000GM
Type:
Intel Form Factor ATX 12V v2.31
PFC:
Active PFC (>0.9 typical)
Input Voltage:
100-240 Vac (full range)
Input Current:
15-6.5A
Input Frequency:
60-50 Hz
Output Capacity:
1000W
Dimension:
150 x 140 x 86 mm
Fan Type:
120mm Hydraulic Bearing(HYB)fan
80 PLUS:
Gold
Efficiency:
90% at typical load
MTBF:
>100,000 hours
Protection:
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal:
100-150ms
Hold Up Time:
>16ms
Cable Type:
Flat, All black

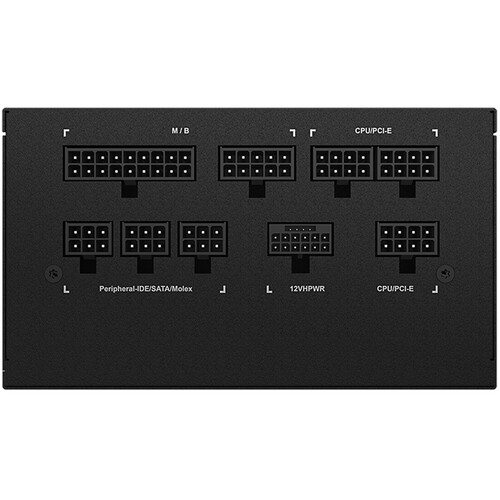

Connectors:
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm*2
PCI-e 6+2 Pin x 6 : 600mm+150mm*3
SATA x 8 :
600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
