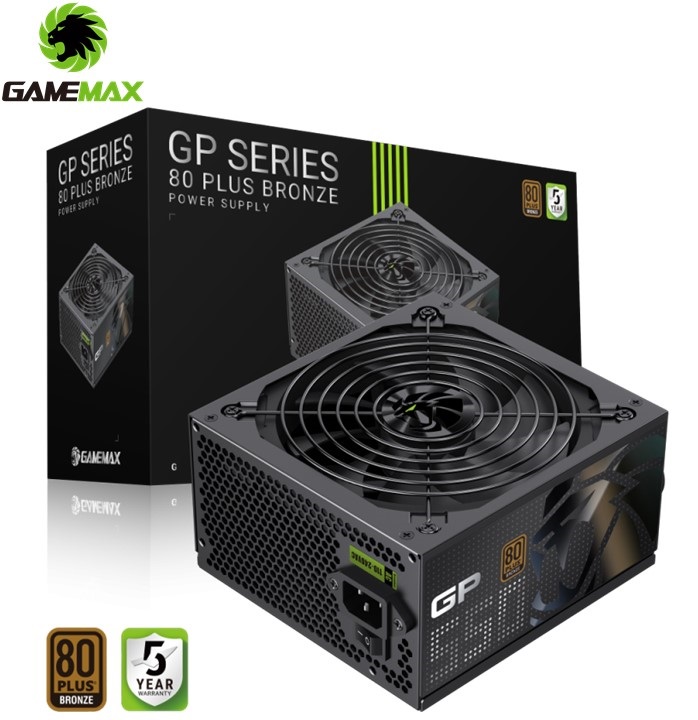

GAMEMAX GP 550B 80+ Bronze Ultra-Stable Power Supply, Smart Fan, and Premium Heat Dissipation.
•Dual Control Circuit: Features 180-degree phase-shifted 3.3V/5V outputs, minimizing impact on +12V input and reducing ripple noise for enhanced stability and ±2% voltage accuracy.
•Premium Taiwanese Capacitors: Utilizes high-quality TEAPO capacitors for reliable full-load performance and stable power delivery.
•Smart Temperature Control Fan 14CM: Automatically adjusts fan speed based on load, balancing energy efficiency and low-noise operation.
•Double-Sided PCB with Top-Side SMD Layout: Single-sided component design (no bottom components) improves stability and manufacturing precision.
•Enhanced Heat Dissipation: Aluminum extrusion and optimized crystal heat dissipation architecture ensure efficient cooling for sustained performance.
TECH SPECS:
Dimensions: 160mm x 85mm x 150mm (W x H x D)
Input Voltage: 110-240 VAC
Input Current: 10-5A
Input Frequency Range: 50-60Hz
PFC: Active PFC (>.99)
Power Good Signal: 100-150 ms
Hold Up Time: >10ms
Efficiency: > 85% (87% max)
MTBF: > 100,000 Hours
Protection: OPP / OVP/ UVP / OCP/ SCP / OTP / NLP / SIP / OLP / NLO
Power: 550W
Operation Temperature: 0-40C
Safety: CE / FCC / CB
Cooling: 140mm Ultra Silent Fan
Noise: <25dBa
80 Plus Certified: Yes - 80 Plus Bronze
