Efficiency ≧ 88% at typical load
80 PLUS ® 230V EU bronze certified
Hold up time ≥ 12ms at 100% load
Premium, all-black cables for easier cable routing
Complete protections: OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO
TECH SPECS:

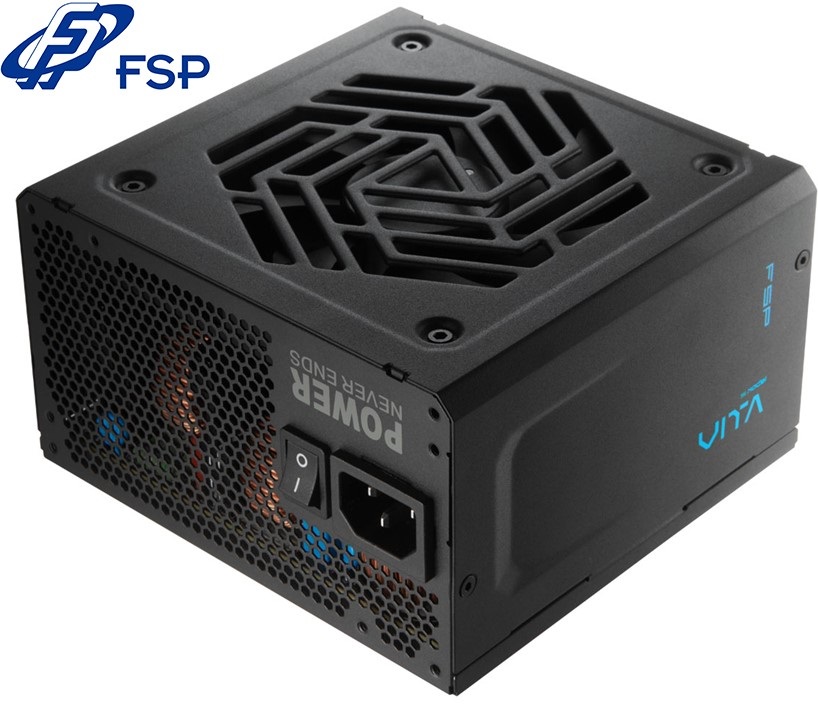

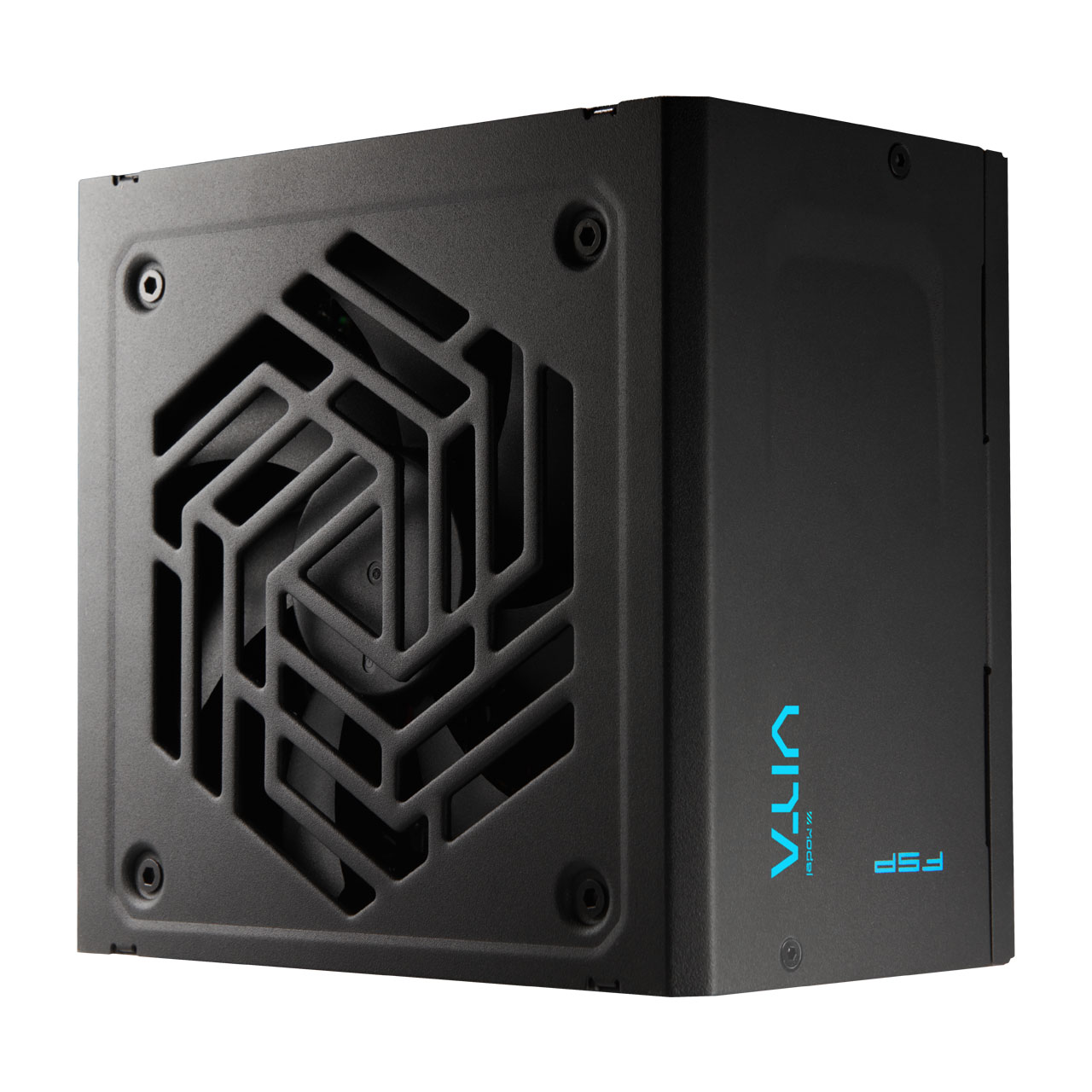

Model VITA-550BD
Rated Output Power 550W
Form Factor ATX12V V3.1
80 PLUS Certification 230V EU Bronze
Input Voltage 200-240V
Input Current 4A
Input Frequency 50-60Hz
PFC Active ≧ 0.9
Efficiency(at typical load) ≥88% at typical load
Fan Type Sleeve Bearing, 120mm
Dimensions(L x W x H) 140×150×86 mm
Operation Temp. 40°C
Protection OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO
