Overview

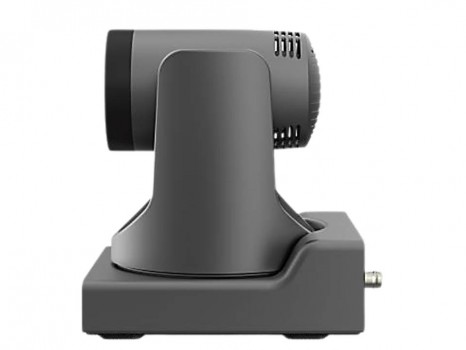

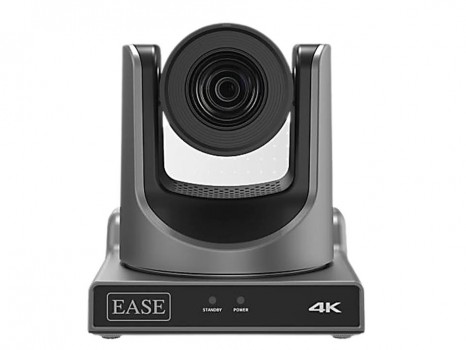

EASE PTZ 12X 4K30P Professional PTZ Camera

4K UHD resolution for exceptional image clarity
Multiple interfaces including NDI®|HX2 for integration into professional video systems
12x optical zoom and 80.8° wide-angle lens for versatile shooting options
HDMI 1.4b for high-quality video output
Low illumination capability for improved performance in low-light environments
Remote control for easy operation and adjustment
Local storage for convenient recording and playback
Low power sleep mode for energy efficiency
Smart exposure for optimized image quality.

Specifications

Camera:-

Signal System:
HDMI: 4K/30, 4K/29.97, 4K/25;
1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 750p/50;
3G-SDI: 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94,
1080i/50, 720p/60, 720p/59.94

Sensor: 1/2.5 inches, CMOS, Effective Pixels: 8.51 Megapixels

Scanning Mode: Progressive

Focal length: 12x, f = 3.47mm ~41.65mm, F 1.84 ~ F3.72

Digital Zoom: 16x

Minimum Illumination: 0.5 Lux @ (F1.8, AGC ON)

Shutter: 1/30s ~ 1/10000s

White Balance: Auto, Indoor, Outdoor, One Push, Manual, VAR

Backlight Compensation: Support

Digital Noise Reduction: 3D Digital Noise Reduction

SNR: ≥ 55dB

Horizontal FOV: 80.8° ~ 7.5°
Vertical FOV: 34.1° ~ 1.89°

Pan Angle: ±170°
Tilt Angle: -30° ~ +90°

Pan Speed: 1.7° ~ 100° /s
Tilt Speed: 1.7° ~ 69.9° /s

Image Flip: Support
Image Freeze: Support

Preset Position: 255
Preset Accuracy: 0.1°

General Specifications:-

Input Voltage: DC 12V/PoE+（802.3at）
Input Current: 1.5A (Max.)
Storage Temperature: -40 ~ 60° C
Operating Temperature: -10 ~ 40° C
Power Consumption: 13W (Max.)
Dimensions: 169mm x 142mm x 175mm
Net Weight: 1.6Kg

Network Features:-

First Stream Resolution: 1920×1080, 1280×720, 1024×576 etc.
Second Stream Resolution: 3840×2160, 1920×1080, 1280×720, 1024×576 etc.
Video Compression: H.264 / MJPEG / H.265
Video Stream: First Stream, Second Stream
Video Bit Rate:  First Stream: 32kbps~51200kbps Second Stream: 32kbps~20480kbps
Bit Rate Control: VBR, CBR
Frame Rate:  50Hz: 1fps~50fps, 60Hz:1fps~60fps
Audio Compression:  AAC, G711A
Audio Bit Rate: 96Kbps, 128Kbps
Protocols: NDI®|HX2, SRT, TCP/IP, HTTP, RTSP, RTMP/ RTMPS, Onvif, DHCP, Multicast, GB/T 28181, etc.

Interfaces:-

USB Interface: 1 x USB2.0,Type-A
HD Output: 1x HDMI: Version 1.4b; 1x 3G-SDI: BNC , 800mVp-p, 75Ω, as per SMPTE 424M standard
Network Interface: 1x RJ45: 10M/100M/1000M adaptive Ethernet
Audio Interface: 1 x Line In: 3.5mm Jack;
1 x Line Out: 3.5mm Jack;
Control Interface: 1 x RS485: 2pin phoenix port, Max Distance: 1200m, Protocol: VISCA / Pelco-D / Pelco-P;
1 x RS232 IN: 8pin Mini DIN, Max Distance: 30m,
Protocol: VISCA / Pelco-D / Pelco-P; 1 x RS232 OUT: 8pin Mini DIN, Max Distance: 30m, Protocol: VISCA only
Power Interface: JEITA type (DC IN 12V)
