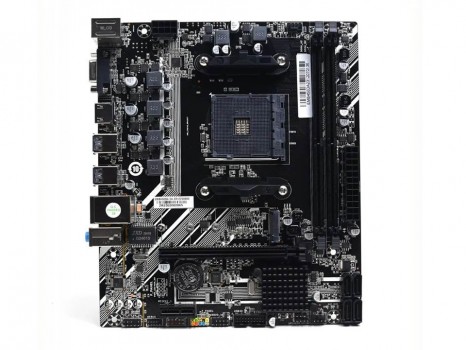

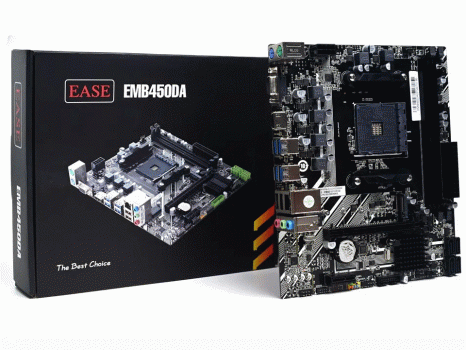

EASE EMB450DA DDR4 AM4 Supported Gaming Motherboard
>Chipset: AMD B450
>Memory: 2XDDR4 2133/2400/2666MHZ
>LAN: 10/100/1000M Ethernet
AMD Socket AM4 LGA1331, Support AMD Ryzen 1000/2000/3000/4000/5000 processors
Storage:
4*SATA 3.0 PORT 6Gb/s, 1*M.2_SSD (M key NVME 2242/2260/2280)
Audio:
Support Realtek ALC897 high fidelity audio controller (Optional Realtek ALC662 high fidelity audio controller)
TECH SPECS:
<table open="" sans",="" helveticaneue-light,="" "helvetica="" neue="" light",="" neue",="" helvetica,="" arial,="" "lucida="" grande",="" sans-serif;="" font-size:="" 14px;="" letter-spacing:="" -0.14px;"="" width="750" style="caption-side: bottom; border-collapse: collapse; --bs-table-bg:transparent; --bs-table-accent-bg:transparent; --bs-table-striped-color:#333e48; --bs-table-striped-bg:rgba(0, 0, 0, 0.05); --bs-table-active-color:#333e48; --bs-table-active-bg:rgba(0, 0, 0, 0.1); --bs-table-hover-color:#333e48; --bs-table-hover-bg:rgba(0, 0, 0, 0.075); width: 754px; margin-bottom: 0px; color: rgb(51, 62, 72); vertical-align: top; border-color: rgb(221, 221, 221);">
|
Specifications |
|
Brand |
Ease |
|
Model |
EMB450DA |
|
Processor Support |
Support AMD 7th APU A8/A10/A12 Series/ Support Athlon 200GE And Ryzen 1000/2000/3000/4000/5000 series CPU Support AMD AM4 Socket 1331 CPU |
|
Chipset |
AMD B450 Chipset |
|
Memory Support |
2 x DDR4 DIMM Slot, Support DDR4 2400/2666/2800/3200MHZ Max to 64GB |
|
LAN |
Onboard Realtek® 8111H 1000Mbps LAN |
|
Audio |
Realtek 6 Channel HD Audio |
|
SATA |
4 SATA 3.0, Support AHCI |
|
USB |
6* USB 3.0 Ports(4 On the rear panel, 2 onboard pins) |
|
4* USB 2.0 Ports(2 On the rear panel, 2 onboard pins) |
|

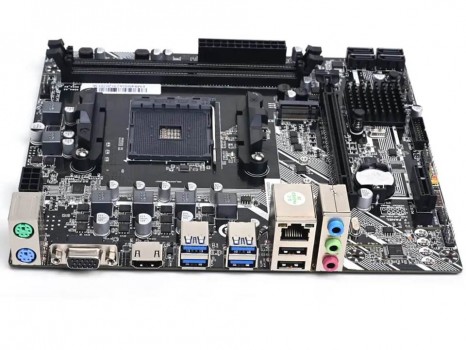

Back Panel |
1 x Ps2 Keyboard & Mouse Port |
|
1 x VGA Port |
|
1 x HDMI Port |
|
4 x USB3.0 Ports |
|
2 x USB 2.0 Ports |
|
1 x RJ45 Port |
|
1 Audio Jacks(Line in/ Line Out/ Mic in) |
|
On-Board Pinheaders/Connectors |
1 x USB 3.0 Pinheader |
|
1 x USB 2.0 Pinheader |
|
1 x Front-Panel Audio Pin header |
|
1 x Front-Panel Pinheader |
|
1 x Fan Connector |
|
1 x 24-Pin ATX Power Connector |
|
1 x 8-Pin ATX |
|
1 x CLR_COM Pinheader |
|
1 x SPEAK Pinheader |
|
Slots |
1 x PCI Express x 16 Slot |
|
1 x PCI Express x 1 Slot |
|
1 x M.2 SSD Slot(Support 2242/2280 SATA/NVME) |
|
Form Factor |
Micro-ATX(21.5m x 18.5 cm),6 mounting holes |
|
Acessories (Optional) |
1X 4-pin SATA data cable |
|
1X I/O Backboard |
|
1X User Manual |
|
1X Drives intalled CD |
