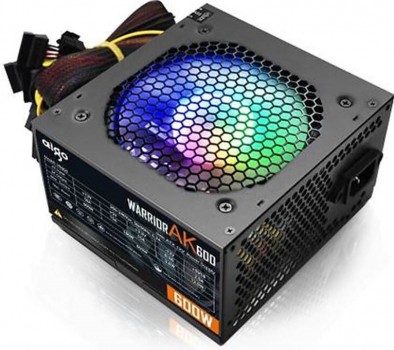

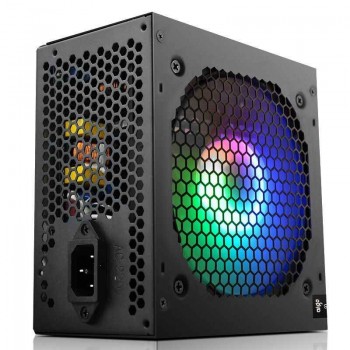

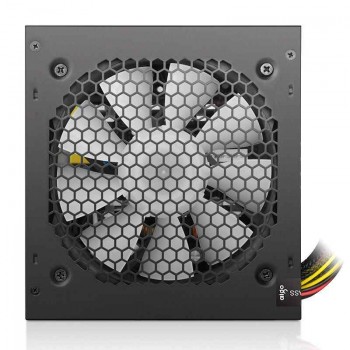

AK600
Power 600 watts, suitable for high-end computer configuration. Comply with Intel ATX12V specification design, support Intel, AMD full range Energy efficient silent fan Built-in PFC, dual magnetic ring magnetic amplifier circuit, high frequency low resistance filter capacitor, Ensure that the current is pure and stable 12cm hydraulic bearing fan, quiet and durable, large air volume. Intelligent temperature control circuit design, automatically adjust fan speed, extend service life. Large speaker capacity, large capacity, support for wide use, can still be used under unstable voltage environment general. Multi-function protection circuit design, with overvoltage, overcurrent, overload, under voltage, short circuit,
Light protection Innovative pest control technology design.
Specifications:
Power supply size: 140mm * 150mm * 86mm
Power standard: ATX 12V
Applicable to CPU range: AMD, Intel
PFC type: active PFC
Maximum power: 600W
Efficiency: 80%
Input voltage: 160V-264V
+ 3.3V output current 20A
+ 5V output current 15A
+ 12V1 output current 48A
- 12V output current 0.3A
+ 5Vsb output current 2.5A
Support wide voltage: Yes
Support temperature control PWM: Yes
Certification: CB, CCC, FCC, Class, B, CE, ROHS
Product weight: 1900g
Support power: 20P / 24P motherboard
Power Output Design: Multiplex + 12V
IDE interface: 2
SATA interface: 4
CPU interface: P4 + 4
Video card interface: (6PIN + 2)* 2
