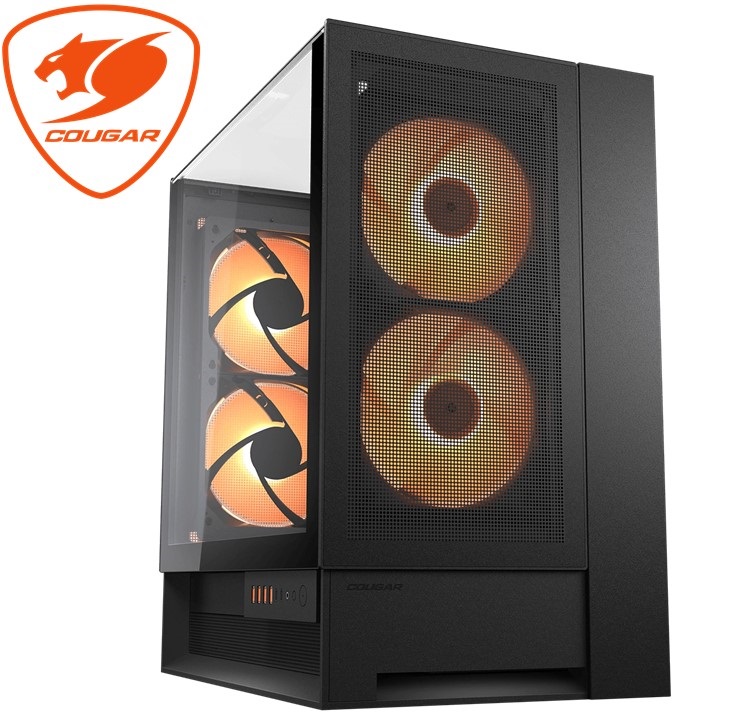

Perfectly symmetrical design allows for omnidirectional placement.
-
Quad 160mm PWM fan support with flexible intake modes.
-
Integrated base compartment revolutionizes zero-visibility cable management.
-
Sliding rail system allows for IO module relocation and expanded port array.
-
Natural alignment of vertically mounted GPU with gravity reduces risk of damage from displacement.
-
Accommodates a maximum GPU length of 380mm.
-
Compatible with reverse connector motherboards.
-
Magnetic dust filter panel and quick release cable management compartment covers make maintenance a breeze.
TECH SPECS:
Product Name OmnyX
Case Form Factor Mid Tower
Motherboard Type Mini ITX / Micro ATX / ATX
Dimensions (WxHxD) 300(W) x 520(H) x 470(D) (mm)
11.8(W) x 20.5(H) x 18.5(D) (in)
I/O Panel USB 3.2 Gen 2 Type-C x 2, USB 3.0 Type-A x 4, 4 Pole Headset Audio Jack x 1, RGB Button
3.5" Drive Bay 2
2.5" Drive Bay 2
Expansion Slots 7 (horizontal slots can be converted into vertical slots)
Cooling Fan Support Front *120mm x 2 / *140mm x 2 / 160mm x 2
M/B Side 120mm x 3
Rear *120mm x 2 / *140mm x 2 / 160mm x 2
Pre-installed Fans Front 160mm ARGB PWM fan x 2 (Forward Blade)
Rear 160mm ARGB PWM fan x 2 (Reverse Blade)
Speed 300-1200 ± 10% RPM
Connector 5V 3 Pin (ARGB) / 4 Pin PWM (Fan)
Maximun Number of Fans 7
Water Cooling Support Front *280mm / *240 mm / *140 mm / *120mm
M/B Side 360mm / 240mm
Rear *280mm / *240 mm / *140 mm / *120mm
RGB Hub Sync with M/B Yes
Max. Graphics Card Length 380(mm) / 15(in)
Max. CPU Cooler Height 170(mm) / 6.7(in)
Max. PSU Length 200(mm) / 7.9(in)
