• Omnidirectional ventilation ensures maximum airflow.
• Vented side cover of power unit promotes air intake.
• Preinstalled PWM ARGB fans, with option to expand to a total of 9 fans.
• Streamlined setup: removable front panel and detachable top cover.
• Vertical GPU Kit included.
TECH SPECS:

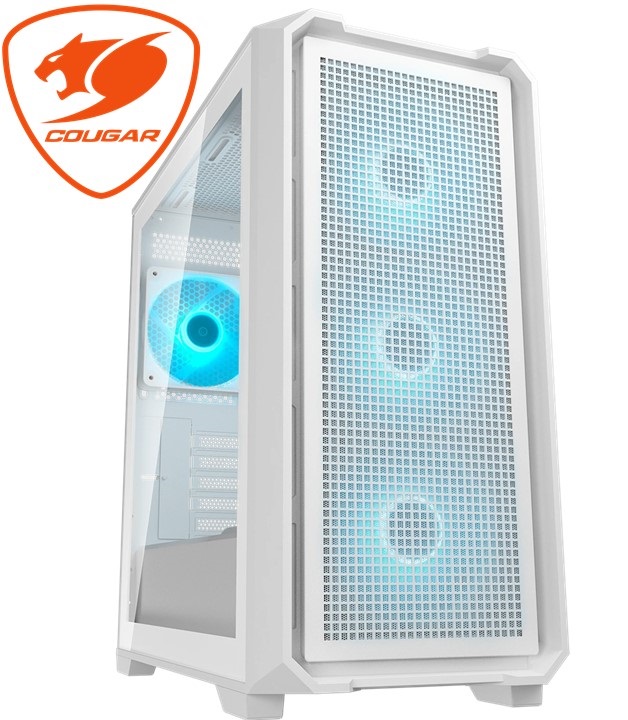

Product Name MX600 RGB / MX600 RGB (White)
Case Form Factor Full Tower
Motherboard Type Mini ITX / Micro ATX / ATX / CEB / E-ATX
Dimensions (WxHxD) 235 x 515 x 478 (mm)
9.3 x 20.3 x 18.8 (in)
I/O Panel Type C Gen 2 (Key A 20-pin connector) x 1, USB 3.0 x 2,
4 Pole Headset Audio Jack, RGB Button
3.5" Drive Bay 1
2.5" Drive Bay 3+1 (converted from 3.5" drive bays)
Expansion Slots Horizontal : 8
Vertical : 3 (install with a vertical bracket in the accessory kit)
Vertical GPU Support Yes
Cooling Fan Support Front 120mm x 3 / 140mm x 3
Top 120mm x 3 / 140mm x 3
PSU Shroud 120mm x 2
Rear 120mm x 1 / 140mm x 1
Pre-installed Fans Front 140mm ARGB fan x 3
Rear 120mm ARGB fan x 1
Speed 140mm ARGB fan: 500-1200 ± 10% RPM
120mm ARGB fan: 500-1400 ± 10% RPM
Connector 5V 3 Pin (ARGB) / 4 Pin PWM (Fan)
Maximun Number of Fans 9
Water Cooling Support Front 360mm / 280mm / 240 mm / 140 mm / 120mm
Top 360mm / 280mm / 240 mm / 140 mm / 120mm
PSU Shroud 240 mm / 120mm
Rear 140 mm / 120mm
Transparent Left Panel Yes
RGB Sync with M/B Yes
Max. Graphics Card Length 400 (mm) / 15.7 (in)
Max. CPU Cooler Height 180 (mm) / 7.1 (in)
Max. PSU Length 180 (mm) / 7.1 (in)
