ATX compatibility compacted into the smallest footprint possible.
-
An ultraslim front panel and frame achieves a more compact form and conserves desk space.
-
Chamfered edges provide an alternative aesthetic as well as gentler handling.
-
Pre-installed 3x120mm RGB fixed mode fans at front and 1x120mm RGB fixed mode fan at rear, with a total maximum fan capacity of 8 fans.
-
Front/top/rear 120mm fans can be upgraded to 140mm fans.
-
Supports up to a 240mm AIO radiator OR an air cooler of up to 175mm height.
-
Accommodates up to 320mm GPU length.
-
Compatible with Mini ITX / M-ATX / ATX motherboards.
-
Houses 2×2.5” SSD + 2×3.5” HDD drives or 3×2.5” SSD drives.
TECH SPECS:

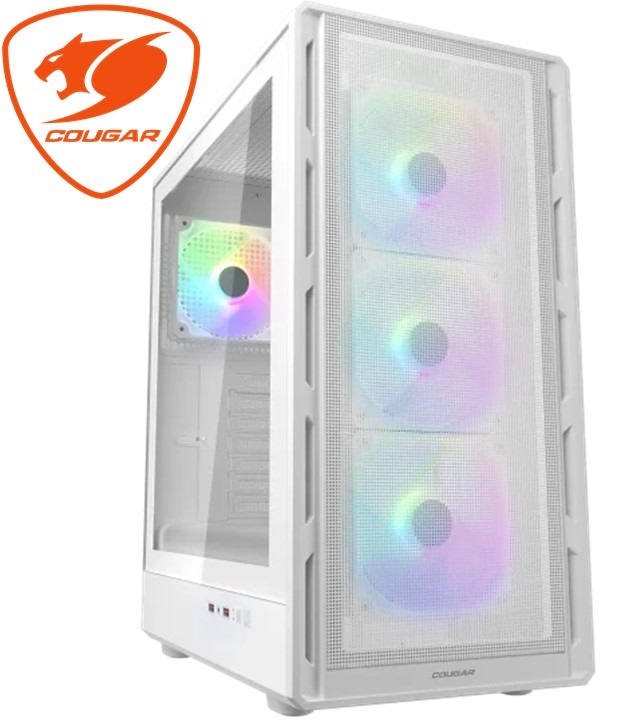

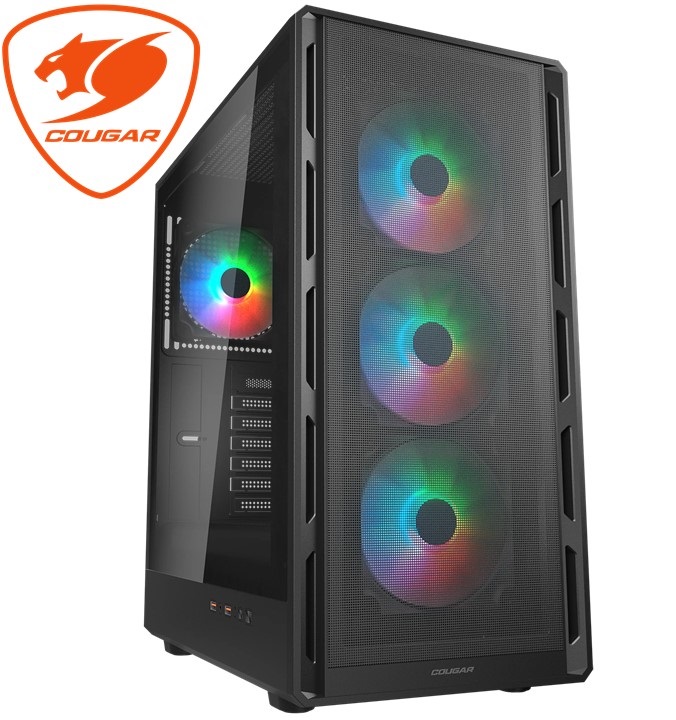

Product Name Airface Pure RGB / Airface Pure RGB (White)
Case Form Factor Mid Tower
Motherboard Type Mini ITX / Micro ATX / ATX
Dimensions (WxHxD) 220 x 460 x 375 (mm)
8.7 x 18.1 x 14.8 (in)
I/O Panel USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, Reset Button
3.5" Drive Bay 2
2.5" Drive Bay 2+1 (converted from 3.5" drive bays)
Expansion Slots 7
Cooling Fan Support Front 120mm x 3 / 140mm x 3
Top 120mm x 2 / 140mm x 2
PSU Shroud 120mm x 2
Rear 120mm x 1 / 140mm x 1
Pre-installed Fans Front 120mm fixed RGB fan x 3
Rear 120mm fixed RGB fan x 1
Speed 1200 ± 10% RPM
Connector Molex 4 Pin
Maximun Number of Fans 8
Water Cooling Support Front * 240mm / 140mm / 120mm
Top * 240mm / 120mm
(When installing the top radiator, the RAM height limitation is 43mm.)
Rear 140mm / 120mm
Max. Graphics Card Length 320 (mm) / 12.6 (in)
Max. CPU Cooler Height 175 (mm) / 6.9 (in)
Max. PSU Length 160 (mm) / 6.3 (in)
