Pre-installed 2x180mm PWM ARGB front fans and 1x120m PWM ARGB rear fan deliver extreme cooling out of the box, with a total maximum fan capacity of 8 fans.
-
Front filter panel attaches magnetically for easy maintenance, with recessed finger groove providing easier handling.
-
Right-offset PSU cabin maximizes airflow space.
-
Accommodates up to 340mm GPU length.
TECH SPECS:

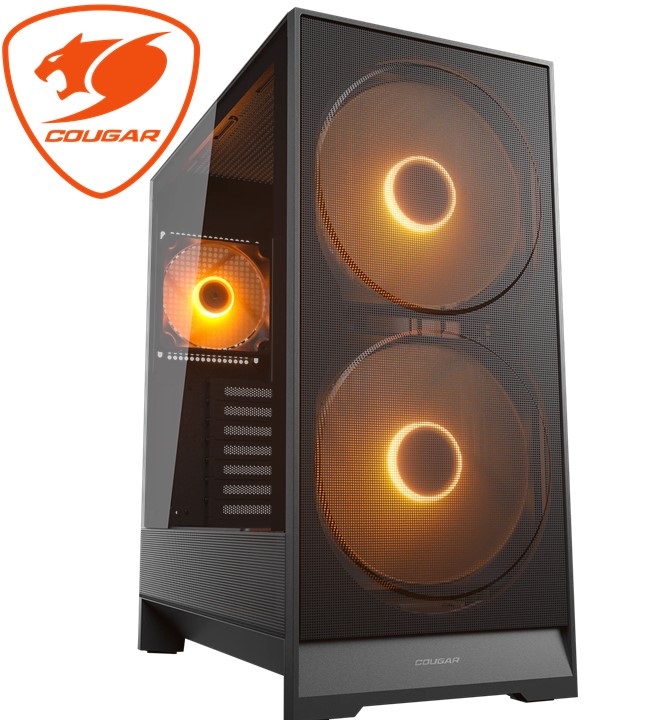

Product Name Airface 180 / Airface 180 (White)
Case Form Factor Mid Tower
Motherboard Type Mini ITX / Micro ATX / ATX / CEB
Dimensions (WxHxD) 220 x 483 x 410 (mm)
8.7 x 19 x 16.1 (in)
I/O Panel USB 3.2 Gen 2 Type-C x 1, USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, RGB Button
3.5" Drive Bay 2
2.5" Drive Bay 1+1(converted from 3.5" drive bays)
Expansion Slots 7 (horizontal slots can be converted into vertical slots)
Vertical GPU Support Yes
Cooling Fan Support Front 180mm x 2 / 140mm x 2 / 120mm x 3
Top 140mm x 2/ 120mm x 2
PSU Shroud 120mm x 2
Rear 120mm x 1
Pre-installed Fans Front 180mm ARGB PWM fan x 2
Rear 120mm ARGB PWM fan x 1
Speed 180mm ARGB PWM fan : 300-1200 ± 10% RPM
120mm ARGB PWM fan : 1200 ± 10% RPM
Connector 180mm ARGB PWM fan Connector : 5V 3 Pin (ARGB) / 4 Pin PWM (Fan)
120mm ARGB PWM fan Connector : 5V 3 Pin (ARGB) / 4 Pin PWM (Fan)
Maximun Number of Fans 8
Water Cooling Support Front 360mm
RGB Sync HUB with M/B Yes
Max. Graphics Card Length 340 (mm) / 13.4 (in)
Max. CPU Cooler Height 170(mm)/ 6.7(in)
Max. PSU Length 160 (mm) / 6.3 (in)
