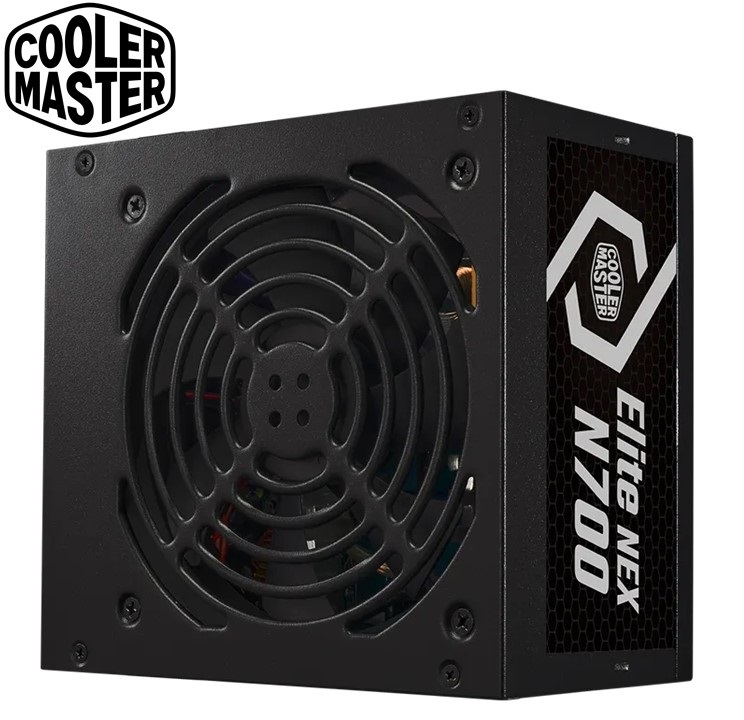

Cooler Master ELITE NEX N700 Active PFC Gaming Power Supply Unit
• Active PFC and a dual forward topology design
• Excellent temperature resistance
• High peak power tolerance
• Durability, reliability, and safety
• 75% efficiency
• 1-year warranty
TECH SPECS:
Model
MPW-7001-ACAN-B
ATX Version
ATX 12V Ver. 2.41
PFC
Active PFC
Input Voltage
100-240V
Input Current
10A
Input Frequency
47-63Hz
Dimensions (L x W x H)
140 x 150 x 86 mm
Fan Size
120mm
Fan Bearing
Sleeve Fan
Efficiency
≥ 75% @ Typical Load
ErP 2014 Lot 3
Yes
Operating Temperature
0-40°C
Power Good Signal
100 - 500 ms
Hold Up Time
≥10ms at 100% load
MTBF
>100,000 Hours
Protections
OVP / OPP / UVP / OTP / SCP / Surge & Inrush Protection
Regulatory
TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, UKCA
ATX 24 Pin Connectors
1
EPS 8 Pin / 4+4 Pin Connectors
1
PCI-e 6+2 Pin Connectors
2
SATA Connectors
5
Peripheral 4 Pin Connectors
3
Series
Elite Series
Category
500 to 750W
Modular
Non Modular
80 Plus Efficiency
None 80 PLUS
Form Factor
ATX
Watts
700W
