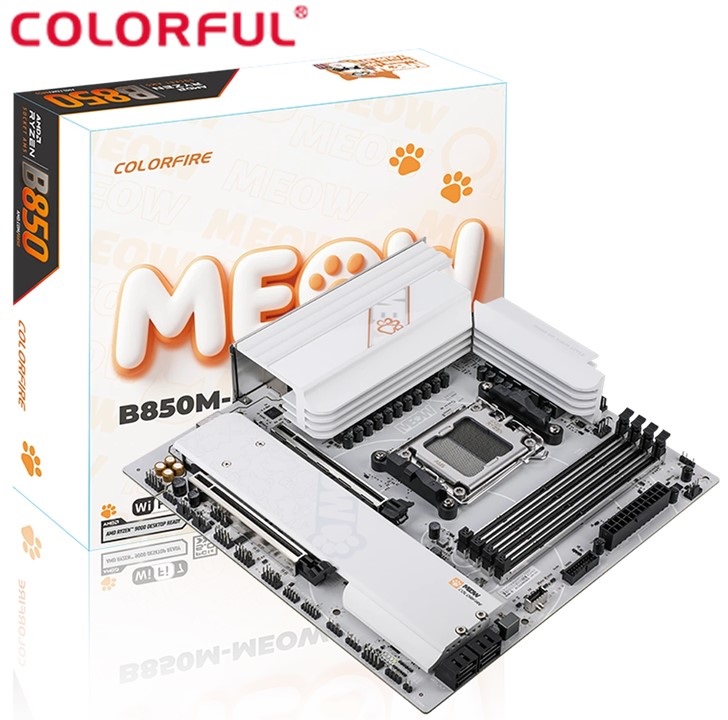

Colorful B850M-MEOW WIFI7 V14 AMD Gaming Motherboard WHITE
Product Model COLORFIRE B850M-MEOW WIFI7 V14
Product Series COLORFIRE Series
Chipset AMD B850
CPU Support Supports AMD Ryzen 7000, 8000, 9000 Series Processors with AM5 Socket Motherboard Compatibility
Memory Support Features four DDR5 memory slots, supporting up to 192 GB capacity (individual slot supports up to 48 GB capacity)
-Supports DDR5-8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800MHz memory
-Supports Extreme Memory Profile (XMP) memory technology
-Supports EXtended Profiles for Overclocking (EXPO) Memory Technology
-Supports Dual-Channel Memory Technology
Storage Interfaces With support for 2 M.2 slots and 4 SATA 6Gb/s hard drive interfaces, you can create RAID 0, RAID 1, RAID 10 disk array with SATA or M.2 NVMe drive devices
-M.2_1 slot: Supports 2242/2280 M.2 SSDs (PCIe 5.0/4.0 x4, CPU connection)
-M.2_2 slot: Supports M.2 SSDs in 2242/2260/2280 form factors (PCIe 4.0 x4, CPU-integrated)
(PCIe 5.0 support depends on the CPU paired with the motherboard)
Expansion Ports Rear I/O Ports:
-4x USB 2.0 ports
-2x USB 3.2 Gen 1 5Gbps Type-A ports
-1x USB 3.2 Gen 2 10Gbps Type-A port
-1x USB 3.2 Gen 1 5Gbps Type-C port
-1x DP 1.2 port, supporting up to 4K resolution at 60Hz
-1x HDMI 1.4 port, supporting up to 4K resolution at 30Hz
-1x 5G network port
-2x Wi-Fi 7 antenna connectors
-1x BIOS update button
-3x audio ports (Audio In/Audio Out/Microphone)
Onboard device connectors:
-1x CPU fan header
-3x system fan headers
-1x water pump header
-2x USB 2.0 headers for additional 4x USB 2.0 Type-A ports
-1x USB 3.2 Gen 1 header for additional 2x USB 3.2 Gen 1 Type-A ports
-1x USB 3.2 Gen 1 Type-C socket for additional 1x USB 3.2 Gen 1 Type-C port
-2x 5V 3-pin ARGB headers
-2 x 12V 4-Pin RGB Header
-1 x Front Audio Header
-1 x Front Panel Header
-1 x Speaker Header
-1 x Serial Port Header
-1 x CMOS Clear Jumper
-1 x BIOS Burner Header
-1 x Diagnosis Card Header
Expansion Slots 1 x PCIe 5.0 x16 Slot
1 x PCIe x16 Slot (Supports PCIe 4.0 x4 spec)
System BIOS 256M UEFI, multi-language support
Power Management Supports S3, S4, S5 network wake-up, scheduled power-on, power-on after AC power failure
Hardware Monitoring CPU Fan Speed Control, System Fan Speed Control, CPU Temperature Monitoring, System Temperature Monitoring, and Voltage Monitoring for Each Power Group
Onboard Network Card RTL8126-CG 5Gbit LAN, MT7925 WiFi 7, Bluetooth 5.4
- Wi-Fi functionality may vary depending on the operating system.
- For Windows 11, Wi-Fi 7 will require version 24H2 or later for full functionality, with Windows 11 21H2/22H2/23H2 supporting only Wi-Fi 6E.
- For Windows 10, please note that no driver is available; refer to the Wi-Fi chipset supplier's website for details.
- The 6GHz Wi-Fi band and bandwidth regulations may vary by country/region.
- The Bluetooth® version may change, please refer to the Wi-Fi module manufacturer's website for the most up-to-date information.
Onboard Sound Card Realtek ALC897 High Definition Audio Decoder with 5.1 Channel Support
Motherboard Specifications M-ATX Form Factor
244mm x 244mm
