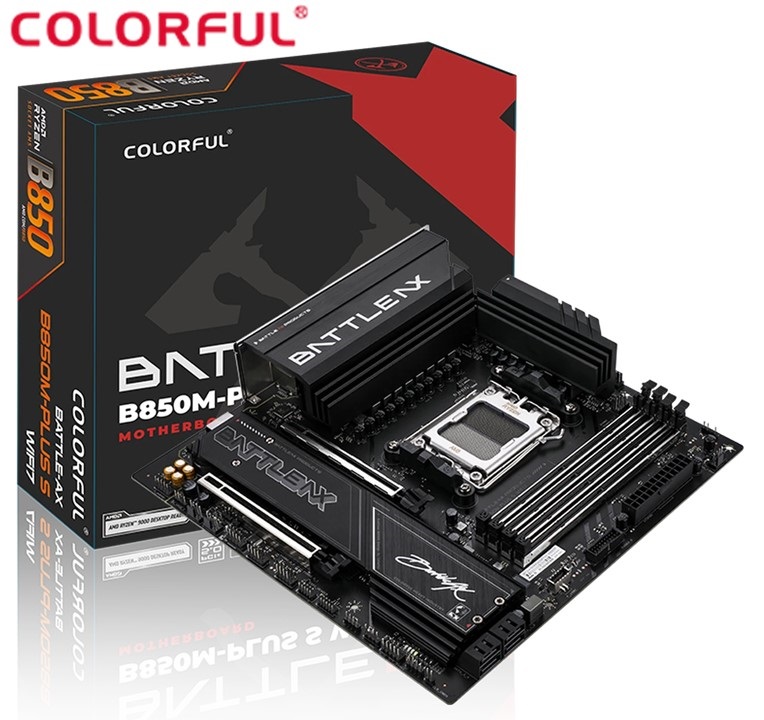

COLORFUL BATTLE-AX B850M-PLUS S WIFI7 V14 AMD Gaming Motherboard
Model BATTLE-AX B850M-PLUS S WIFI7 V14
Product Series BATTLE-AX series
Chipset AMD B850
Processor Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard
Memory 4 DDR5 memory sockets are provided, which can support up to 192 GB of memory (a single socket can support up to 48 GB of memory)
- Support DDR5-8000 (OC)/7800 (OC)/7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400(OC)/5200 (OC)/5000MHz memory
- Support Extreme Memory Profile (XMP) memory technology
- Support EXtended Profiles for Overclocking (EXPO) memory technology
- Supports dual channel memory technology
SATA Ports 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces in total, supports creating RAID 0, RAID 1, RAID 10 disk arrays with SATA or M.2 NVMe hard disk devices
-M.2_1 slot: supports 2242/2280 specification M.2 SSD (PCIe 5.0/4.0 x4, CPU channel)
-M.2_2 slot: supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel)
(Whether PCIe 5.0 is supported depends on the CPU of the motherboard)
Board I/O Rear I/O :
-4×USB 2.0 interfaces
-2×USB 3.2 Gen 1 5Gbps Type-A interfaces
-1×USB 3.2 Gen 2 10Gbps Type-A interface
-1×USB 3.2 Gen 1 5Gbps Type-C interface
-1×DP 1.2 interface, supporting up to 4K 60Hz resolution
-1×HDMI 1.4 interface, supporting up to 4K 30Hz resolution
-1×5G network interface
-2×Wi-Fi 7 antenna interfaces
-1× BIOS update button
-3×Audio interfaces (audio input/audio output/microphone)
On board :
-1×CPU fan pin
-3×System fan pins
-1×Water cooling pump pin
-2×USB 2.0 pins can be expanded to 4 USB 2.0 Type-A interfaces
-1×USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 Type-A port
-1 USB 3.2 Gen 1 Type-C slot can be expanded 1 USB 3.2 Gen 1 Type-C port
-2×5V 3-pin ARGB pins
-2×12V 4-pin RGB pins
-1×Front audio pin
-1×Front panel pin
-1×Speaker pin
-1×COM port pin
-1×Clear CMOS jumper
-1×BIOS burner pin
-1×POST card pin
Expansion Slots 1×PCIe 5.0 x16 slot
1×PCIe x16 slot (supports PCIe 4.0 x4 specification)
BIOS 256M UEFI, support multiple languages
Power Management Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot
Hardware Monitor CPU fan speed controllable, system fan speed controllable, CPU temperature monitoring, System temperature monitoring, and each group voltage monitoring
LAN RTL8126-CG 5Gbit network card, MT7925 WiFi 7 wireless network card, Bluetooth 5.4
- Wi-Fi functionality may vary depending on the operating system.
- For Windows 11, Wi-Fi 7 requires version 24H2 or later for full functionality. Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
- For Windows 10, please note that no drivers are available. For more information, refer to the Wi-Fi chipset vendor's website.
- Wi-Fi 6GHz frequency band and bandwidth regulations may vary by country/region.
- Bluetooth® versions are subject to change; please refer to the Wi-Fi module manufacturer's website for the latest instructions.
Audio Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels
Configuration M-ATX
244mm x 244mm
