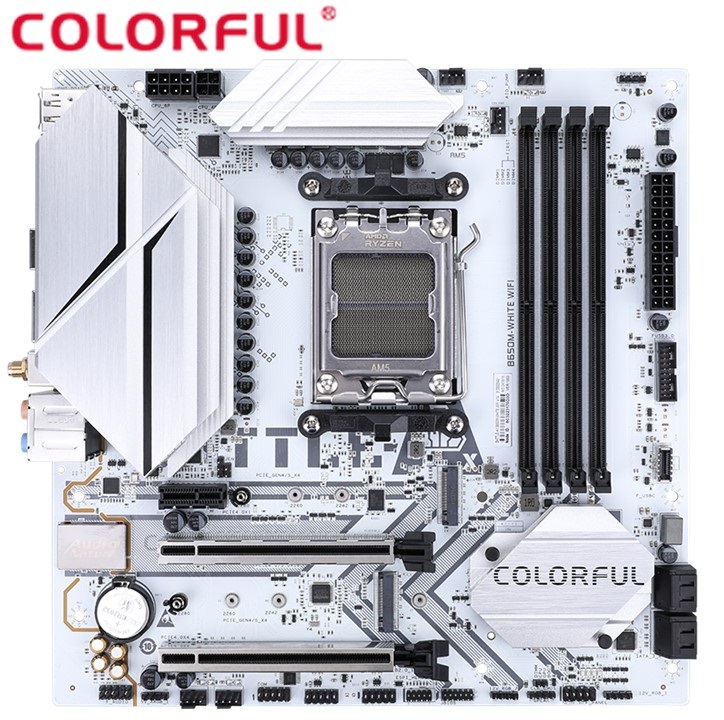

Colorful BATTLE-AX B650M WIFI V14 AMD Gaming Motherboard WHITE
BATTLE-AX series exclusive customized white motherboard
BATTLE-AX series customized frost cooling armor with full coverage condensing fins to enhance heat dissipation
Adopting 12+2+1 phase reinforced power supply design, F.C.C ferrite inductor (Dr. MOS 55A)
Provide 2 PCIe 5.0 x4 M.2 SSD slots
Provide 1 USB 3.2 Gen 2 10Gbps Type-C and 1 USB 3.2 Gen 2 10Gbps Type-A high-speed rear interface
Equipped with Realtek 2.5G fast wired network card and AX200 WiFi 6 wireless network card, supporting Bluetooth 5.2
Support iGame Center light efficiency control software, which can synchronously adjust the light efficiency of heat sinks, cooling fans, and memory
I/O backplane supports one click BIOS upgrade function
Six major protective technologies ensure more stable product operation
Strict testing of 200 processes with guaranteed quality
Comprehensive upgrade of PCB atomization process
TECH SPECS:
Model BATTLE-AX B650M-WHITE WIFI V14
Product Series BATTLE-AX series
Chipset AMD B650
Processor Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard
Memory 4 DDR5 memory sockets are provided, which can support up to 192 GB of memory (a single socket can support up to 48 GB of memory)
- Support DDR5-7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory
- Support Extreme Memory Profile (XMP) memory technology
- Support EXtended Profiles for Overclocking (EXPO) memory technology
- Supports dual channel memory technology
SATA Ports 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, and supports creating RAID 0, RAID 1, RAID 10 RAID with SATA or M.2 NVMe hard disk devices
- M.2_1 slot: supports 2242/2260/2280 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel)
- M.2_2 slot: supports 2242/2260/2280 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel)
(* Is it supported PCIe 5.0 is related to the CPU used with the motherboard)
Board I/O Rear I/O :
-4×USB 2.0 interfaces
-2×USB 3.2 Gen 1 Type-A interfaces
-1×USB 3.2 Gen 2 Type-A interface
-1×USB 3.2 Gen 2 Type-C interface
-1×DP 1.2 interface, supporting up to 4K 60Hz resolution
-1×HDMI 1.4 interface, Supports up to 4K 30Hz resolution
-1×2.5G network interface
-2×Wi-Fi 6 antenna interfaces
-6×Audio interfaces (audio input/audio output/microphone)
-1×BIOS update button
On board:
-1×CPU fan pin
-3×System fan pins
-1×water cooling pump pin
-2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces
-1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces
-1×USB 3.2 Gen 1 Type-C slot expandable 1 USB 3.2 Gen 1 Type-C interface
-2×5V 3-pin ARGB pins
-2×12V 4-pin RGB pins
-1×Front audio pin
-1×Front panel pin
-1×Speaker pin
-1×Clear CMOS jumper
-1×COM port pin
-1×BIOS burner pin
-1×POST card pin
Expansion Slots 1×PCIe 5.0 x16 slot
1×PCIe x16 slot (supports PCIe 4.0 x4 specifications)
1×PCIe 4.0 x1 slot
BIOS 128M UEFI, support multiple languages
Power Management Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot
Hardware Monitor CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring
LAN RTL8125BG 2.5Gbit LAN, AX200 WiFi 6 wireless network card, Bluetooth 5.2
Audio Realtek ALC897 high fidelity decoding chip, Support up to 7.1 channels
Configuration M-ATX
245mm x 245 mm
