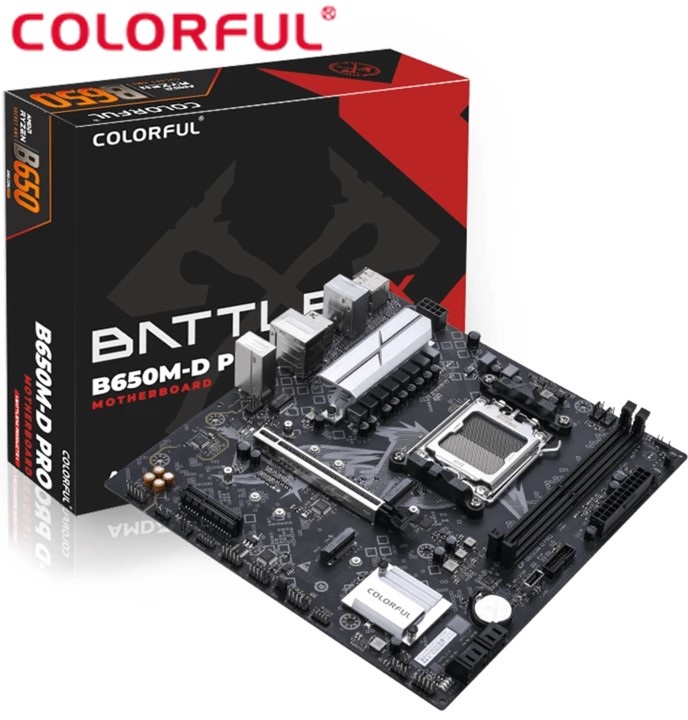

Colorful Battle-AX B650M-D Pro V14 AM5 Gaming Motherboard
Equipped with 7+2+1 phase VRM with sleek heatsink, Colorful B650M-D Pro V14 comes with PCI-E X16 Gen4 as well as 2x NVME Gen4x4 slots, primary of which is CPU-linked and secondary NVME slot is chipset linked.
PRODUCT MODEL BATTLE-AX B650M-D PRO V14
PRODUCT RANGE Tomahawk Series
CHIPSET AMD B650
CPU SUPPORT Supports AMD Ryzen 7000 series, 8000 series, and 9000 series processors that are compatible with the motherboard AM5 socket
MEMORY SUPPORT Provides 2 DDR5 memory slots, supporting up to 96 GB memory capacity (single slot supports up to 48 GB capacity)
-Supports DDR5-7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800MHz memory
-Supports Extreme Memory Profile (XMP) memory technology
-Supports EXtended Profiles for Overclocking (EXPO) memory technology
-Supports dual-channel memory technology
STORAGE INTERFACE Supports 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces in total, supports creating RAID 0, RAID 1, RAID 10 disk arrays with SATA hard disk devices
-M.2_1 slot: supports 2242/2260/2280 specification M.2 SSD (PCIe 5.0/4.0 x4, CPU channel)
-M.2_2 slot: supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, PCH channel)
(*Whether PCIe 5.0 is supported depends on the CPU of the motherboard)
EXTENSION INTERFACE Rear I/O interface:
-4 USB 2.0 interfaces
-2 USB 3.2 Gen 1 Type-A interfaces
-1 DP 1.2 interface, supports up to 4K 60Hz resolution
-1 HDMI 2.0 interface, supports up to 4K 60Hz resolution
-1 PS/2 interface
-1 2.5G network interface
-1 BIOS update button
-3 audio interfaces (audio input/audio output/microphone)
Onboard device interface:
-1 CPU fan pin
-2 system fan pins
-1 water cooling pump pin
-2 USB 2.0 pins can be expanded to 4 USB 2.0 Type-A interfaces
-1 USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 Type-A interfaces
-1 USB 3.2 Gen 1 Type-C slot can be expanded to 1 USB 3.2 Gen 1 Type-C interface
-2 5V 3-pin ARGB pin
-1 front audio pin
-1 front panel pin
-1 speaker pin
-1 serial port pin
-1 clear CMOS jumper
-1 BIOS burner pin
-1 diagnostic card pin
EXPANSION SLOTS 1 PCIe 4.0 x16 slot
1 PCIe 4.0 x4 slot
SYSTEM BIOS 128M UEFI, support multiple languages
POWER MANAGEMENT Support S3, S4, network S5 wake-up, support scheduled startup, call startup
HARDWARE MONITORING CPU fan speed controllable, system fan speed controllable, CPU temperature monitoring, System temperature monitoring, and each group voltage monitoring
ONBOARD NIC RTL8125BG 2.5Gbit network card
ONBOARD SOUND CARD Realtek ALC897 high-fidelity decoding chip, supports 5.1 channels
MOTHERBOARD SPECIFICATIONS M-ATX form factor
244mm x 235mm
