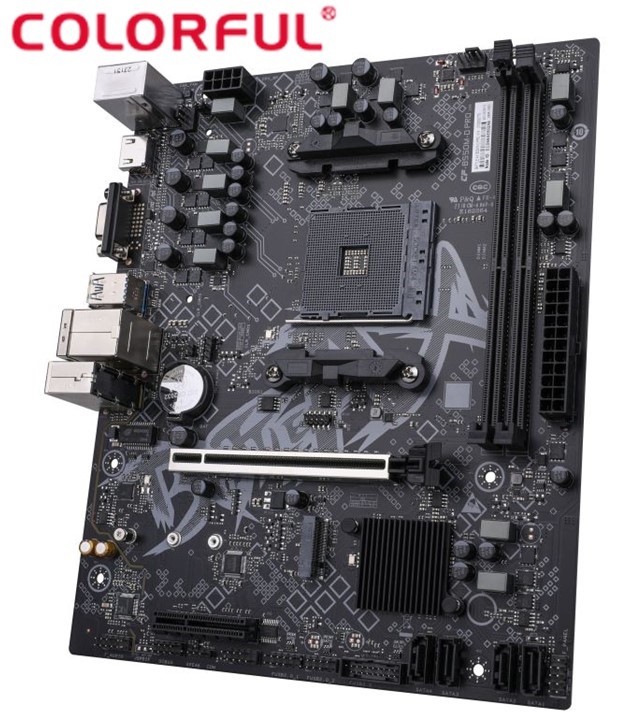

Colorful BATTLE-AX B550M-D PRO V14 AMD Gaming Motherboard
Provide 1 PCIe 4.0 x4 M.2 SSD slot
Provide 4 USB 3.2 Gen 1 Type-A high-speed rear interfaces
Equipped with Realtek 2.5G fast wired network card
Provide HDMI+VGA display interface
Six major protective technologies ensure more stable product operation
Strict testing of 200 processes with guaranteed quality
Comprehensive upgrade of PCB atomization process
TECH SPECS:
Model BATTLE-AX B550M-D PRO V14
Product Series BATTLE-AX series
Chipset AMD B550
Processor Supports AMD Ryzen series processors that fit the AMD AM4 slot of the motherboard
Memory 2 DDR4 memory sockets are provided, which can support up to 64GB of memory (a single socket can support up to 32 GB of memory)
- Support DDR4-3600(OC)/3200/2933/2666/2400MHz memory
- Support Extreme Memory Profile (XMP) memory technology
- Supports dual channel memory technology
SATA Ports 1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces, and supports creating RAID 0, RAID 1, RAID 10 disk arrays using SATA hard disk devices
- M.2_1 slot: supports 2242/2260/2280 M.2 SSD (PCIe 4.0 x4/SATA, CPU channel)
Board I/O Rear I/O :
-2×USB 2.0 interfaces
-4×USB 3.2 Gen 1 Type-A interfaces
-1×HDMI 1.4 interface, Supports up to 4K 30Hz resolution
-1×VGA interface
-1×PS/2 interface
-1×2.5G network interface
-3×audio interfaces (audio input/audio output/microphone)
On board:
-1×CPU fan pin
-1×system fan pin
-2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces
-1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces
-1×12V 4-pin RGB pin
-1×Front audio pin
-1×front panel pin
-1×speaker pin
-1×Clear CMOS jumper
-1×COM port pin
-1×BIOS burner pin
-1×Debug light pin
-1×USB live control jumper
Expansion Slots 1×PCIe 4.0 x16 slot
1×PCIe 3.0 x4 slot
BIOS 128M UEFI, support multiple languages
Power Management Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot
Hardware Monitor CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring
LAN RTL8125 2.5Gbit LAN
Audio Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels
Configuration M-ATX
197mm x 240mm
