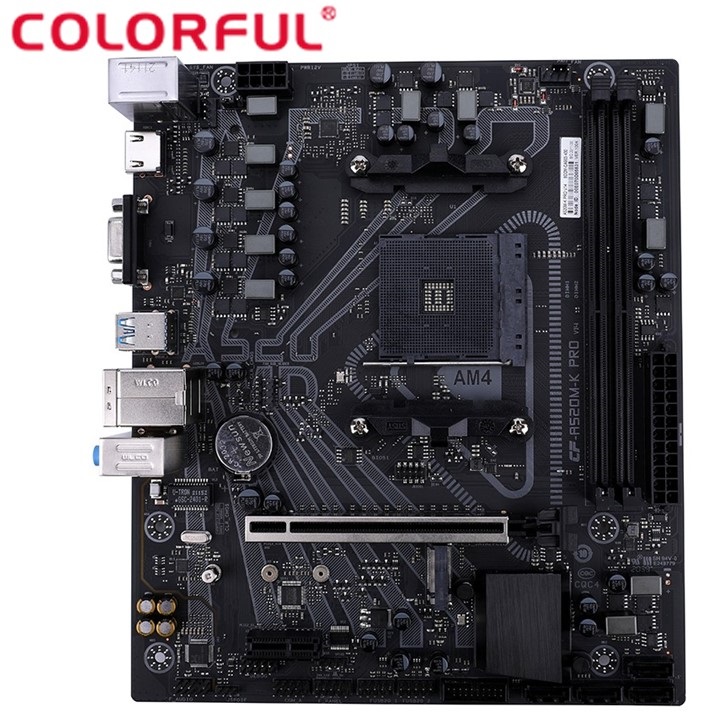

Colorful A520M-K PRO V14 AMD Gaming Motherboard
-
Supports AMD AM4 socket Ryzen 3000 series Processors
-
2*DIMM slots
-
Supports Dual Channel DDR4 3200(OC)/3000(OC)/2800(OC)/2666/2400/2133MHz memory
-
4*SATA3.0 ports
-
RTL8111H 1000M LAN
-
6-Channel High Definition audio CODEC (6-CH)
-
VGA+HDMI ports
-
6*USB2.0 ports(4 through header)
-
6*USB3.1 Gen1 ports(2 through header)
-
1个12V 4Pin RGB header
TECH SPECS:
Model A520M-K PRO V14
Product Series AMD chipset,COLORFUL series
Chipset AMD A520
Processor Supports AMD Socket AM4 and 3rd Generation AMD Ryzen ™ processors
Memory 2 DIMM slots，Supports Dual Channel DDR4 3200(OC)/3000(OC)/2800(OC)/2666/2400/2133MHz memory
Graphics Support 1*PCI Express3.0X16 slot
SATA Ports 4*SATA3.0 6Gb/s ports
Board I/O IO:1*PS2,2*USB2.0,1*HDMI,1*VGA,4*USB3.1 GEN1 TYPE-A ports,1*RJ45 1000M LAN,1*6audio ports.Onboard：2*USB2.0 and 1*USB3.1 GEN1 TYPE-A headers
Expansion Slots 1*PCI Express3.0X1 slot.1*M.2 slot;
BIOS 128M UEFI
Hardware Monitor CPU Fan speed Controlled，SYSTEM Fan speed Monitoring,CPU Temperature Monitoring，System Temperature Monitoring，and Voltage monitoring
LAN 1000M LAN，Provides 10/100/1000Mb Ethernet
Audio 6-Channel High Definition audio CODEC
Configuration 192mm*225mm mATX
