Overview
IT'S WONDERFULLY SPLIT!
Flexible, scalable, and divided up in all the right ways: the TUF Gaming GT502 puts your prized hardware up front and holds your six with a stack of cooling options to slay thermals and express ultimate performance. Load up, lock in, and watch it thrive.
DUAL-CHAMBER CHASSIS
CLIMATE CONTROL

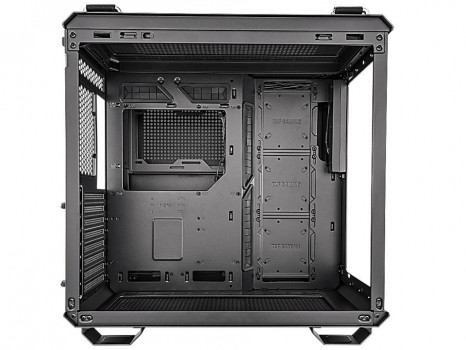

GT502 internals are divided into two chambers, allowing you to build clean and configure independent cooling zones for the CPU and GPU. Freely expand your rig and give system components the ideal environment to dish out frames and slice through workloads.
TOOL-FREE SIDE PANELS
FINGER-FRIENDLY RESTRICTIONS
The TUF Gaming GT502 continues its builder optimizations with side panels that can be removed simply by pressing a button hidden on the rear of the chassis.
PANORAMIC VIEW
SINGLE-STATE PEEKABOO

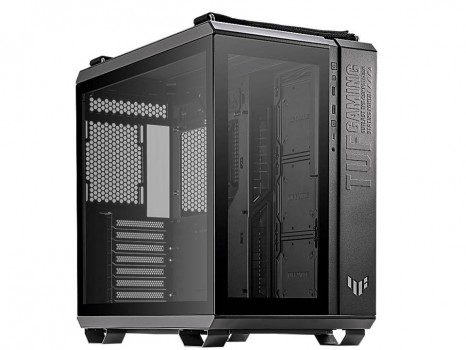

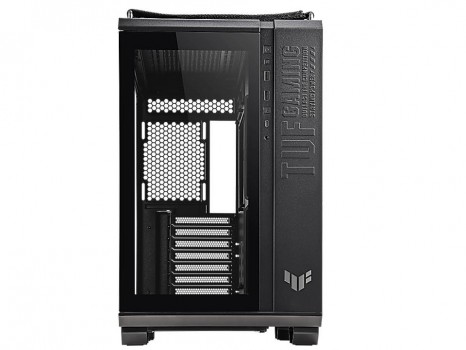

Tempered glass panels at the front and side provide a tactfully tinted view of the main chamber, showcasing your build to own the room.

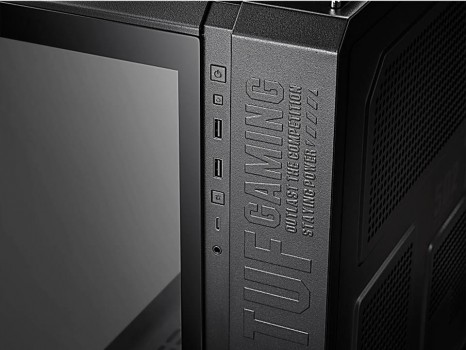

FRONT PANEL HIGH-SPEED USB TYPE-C
WITHIN ARM’S REACH
In addition to two USB-A ports, the TUF Gaming GT502 front panel features a USB 3.2 Gen 2 Type-C port ripe for transfer speeds up to 10 Gbps.

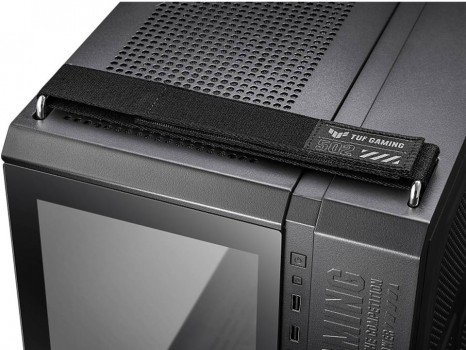

TUF GAMING-STYLE WOVEN STRAPS
WEAVE HO!
Two durable and detachable straps that can support up to 30 kg (66 lbs) make it much easier to move the chassis around even when it’s packed with hardware.
FULLY MODULAR DESIGN
DOWN TO THE SKELETON

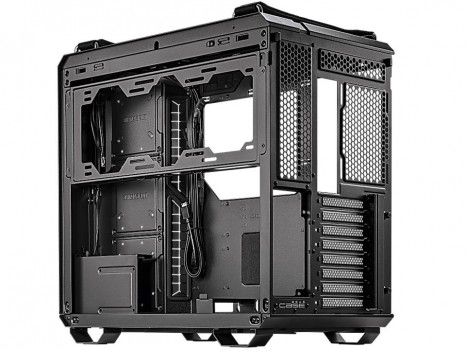

Whether you prefer a modest build or a fully-loaded battle station, the GT502 is ready. Most of its panels and mounts are removable to ease hardware installation – take it apart to your heart’s content then build it up in your ideal image.
MATCHING CABLES AND HANDLES​
COORDINATED STYLE
The cables and handles of the GT502 White Edition are color-matched to its pristine exterior for a distinctive aesthetic.
Specifications
Model
TUF Gaming GT502
Case Size
Mid Tower
Motherboard Support
ATX
Micro-ATX
Mini-ITX
Drive Bays
4 x 2.5"/3.5" Combo Bay
Expansion Slots
8
3 (additional vertical)
Front I/O Port
1 x headphone / Microphone
2 x USB 3.2 Gen1
1 x USB 3.2 Gen2 Type C
LED Control Button
Tempered Glass
Front Side
Left Side
Radiator Support (Top)
120 mm
140 mm
240 mm
280 mm
360 mm
Radiator Support (Rear)
120 mm
Cooling Support (Top)
3 x 120 mm
2 x 140 mm
Cooling Support (Rear)
1 x 120 mm
Maximum CPU Cooler Height
163 mm
Maximum GPU Length
400 mm
Maximum PSU Length
200 mm
Removable Dust Filters
Top
Bottom
Right
Dimensions
285 x 450 x 446 mm
Weight
11Kg
